• 4.88 axle ratio
• Stationary elevated idle control (SEIC)
• Manual transfer case & hubs
• Four wheel drive
• 72 amp/hr 650 CCA battery
• 157-amp HD alternator

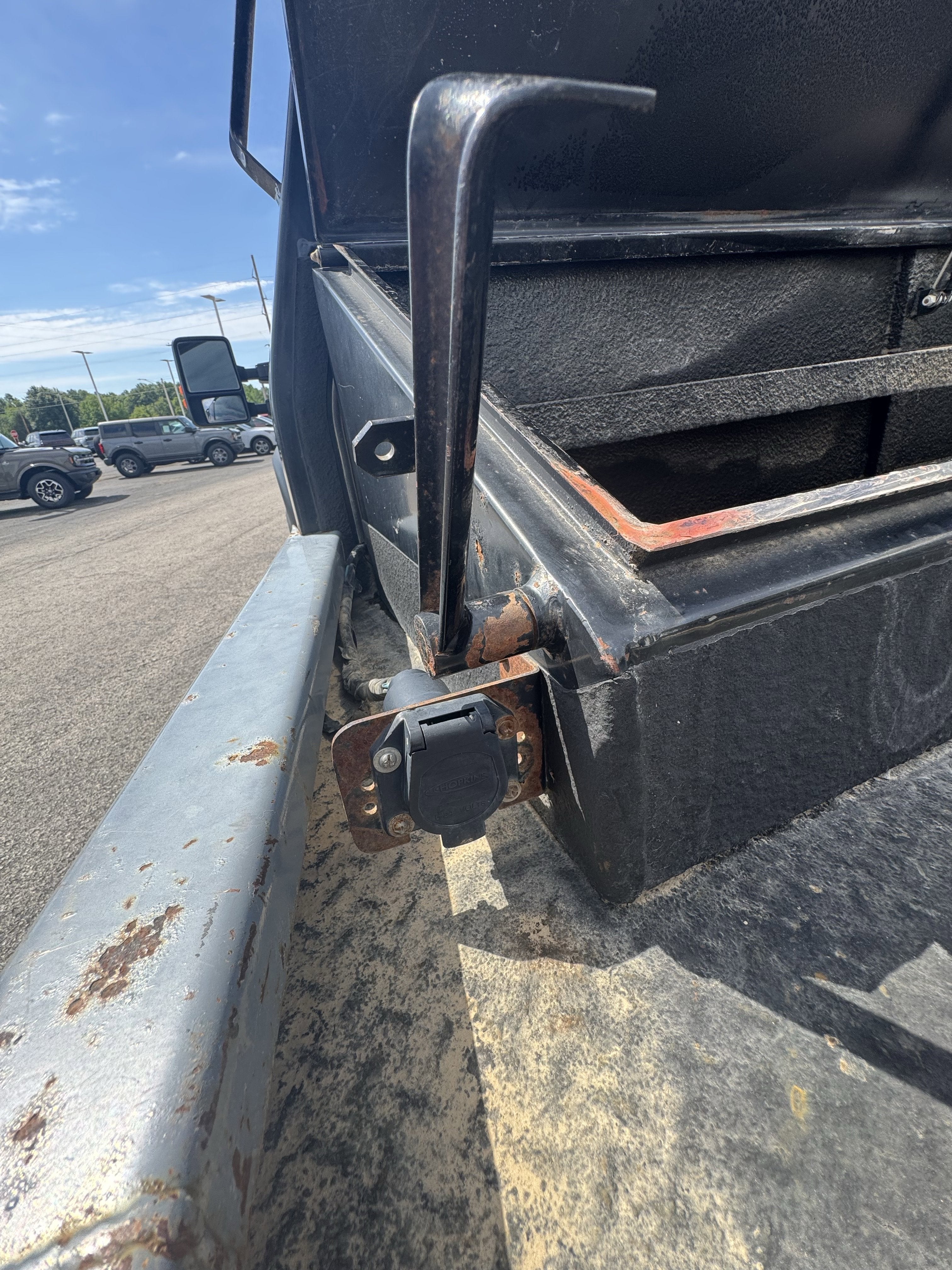

• 7-wire trailer tow harness w/relays, blunt cut & labeled
• (2) front tow hooks
• 162" wheelbase
• Mono-beam front axle w/coil spring suspension
• Rear auxiliary springs
• HD gas shock absorbers
• Front/rear stabilizer bars
• Dual rear wheels
• Pwr steering w/steering damper
• Pwr 4-wheel disc brakes w/hydro boost
• Trailer brake controller *Intended for use only w/trailers having electric brakes*

• 225/70R19.5G BSW tires -inc: (2) front all-season & (4) rear all-season tires
• 19.5" forged polished aluminum wheels w/bright hub covers & center ornaments

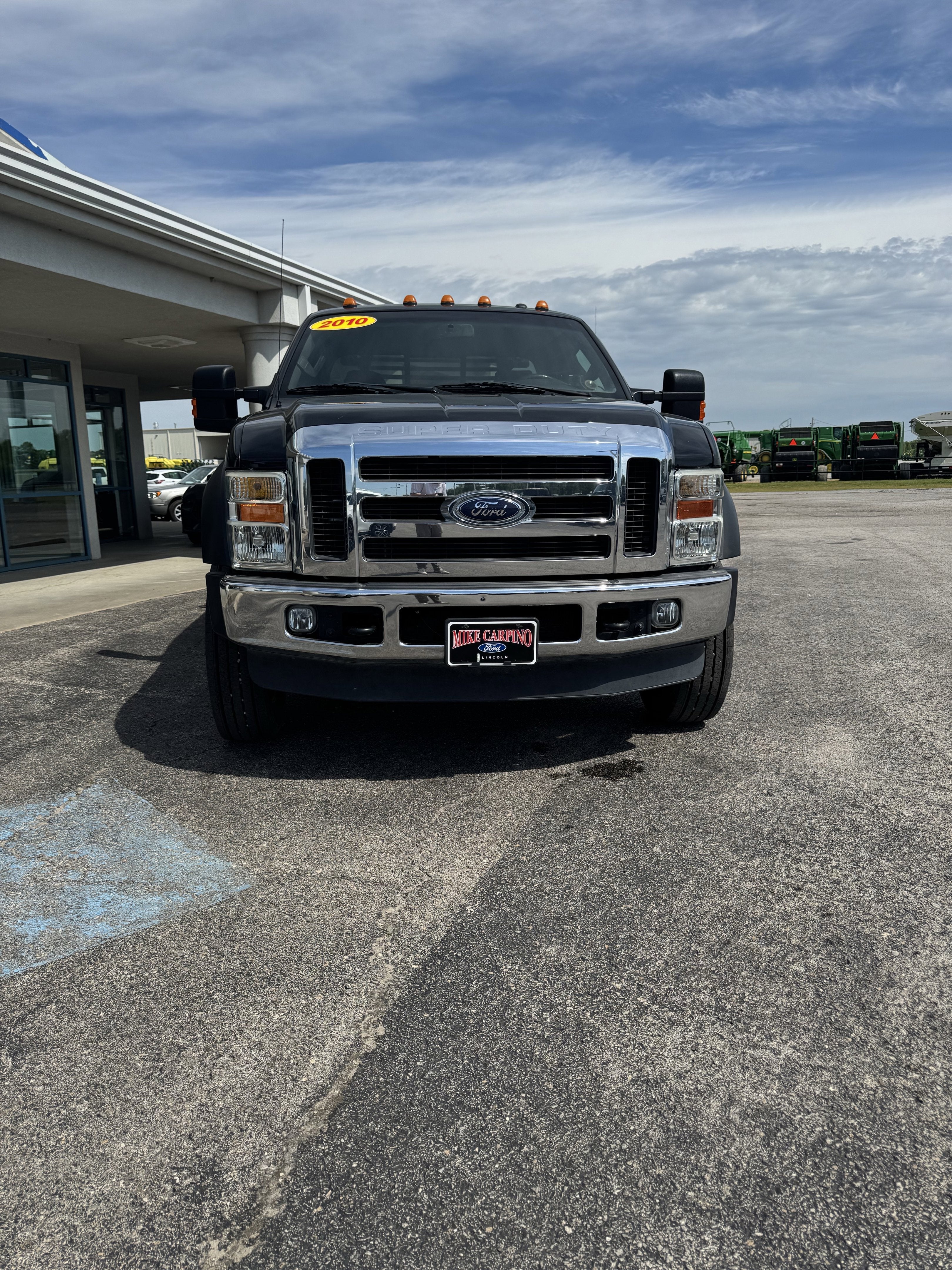

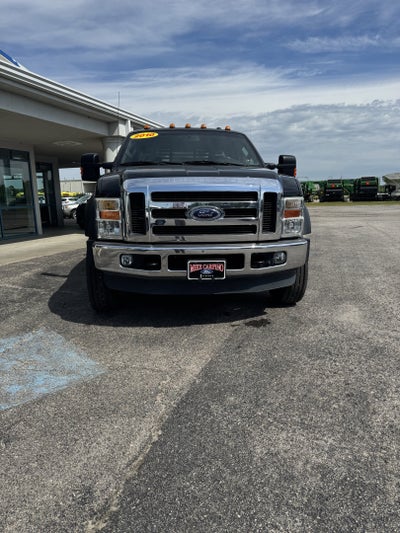

• Chrome steel front bumper w/grained MIC top cover
• Front fender vents
• Chrome grille surround w/medium platinum insert
• Dual beam jewel effect headlights
• Fog lamps
• Roof clearance lights
• Pwr telescoping pwr folding trailer tow mirrors -inc: pwr heated glass, heated convex spotter mirror, integrated clearance lights & turn signals
• Solar tinted glass
• Rear door/window privacy tinted glass
• Flip-out rear quarter windows
• Pwr sliding rear window
• Variable intermittent windshield wipers
• Front license plate bracket
• Body color door handles
• Underhood service light
• Cargo light

• AM/FM stereo w/CD/MP3 player -inc: aux input jack, digital clock, (4) speakers
• Sirius satellite radio
• SYNC voice-activated communications & entertainment system -inc: Bluetooth capability, steering wheel audio controls, USB port, audio input jack, 911 assist, vehicle health report, turn-by-turn navigation, real-time traffic

• Dual zone electronic automatic temp control -inc: silver metallic vents w/chrome rings

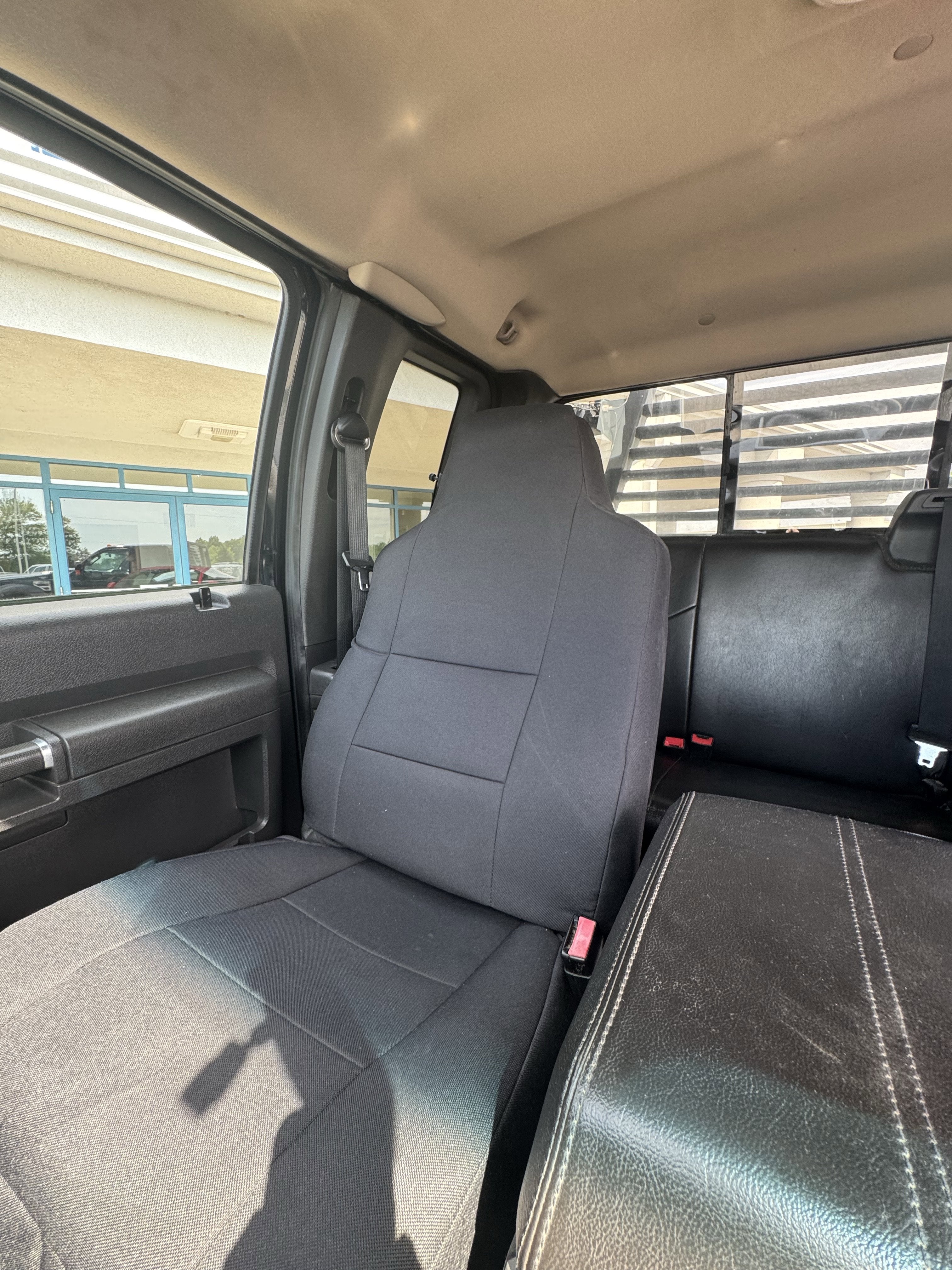

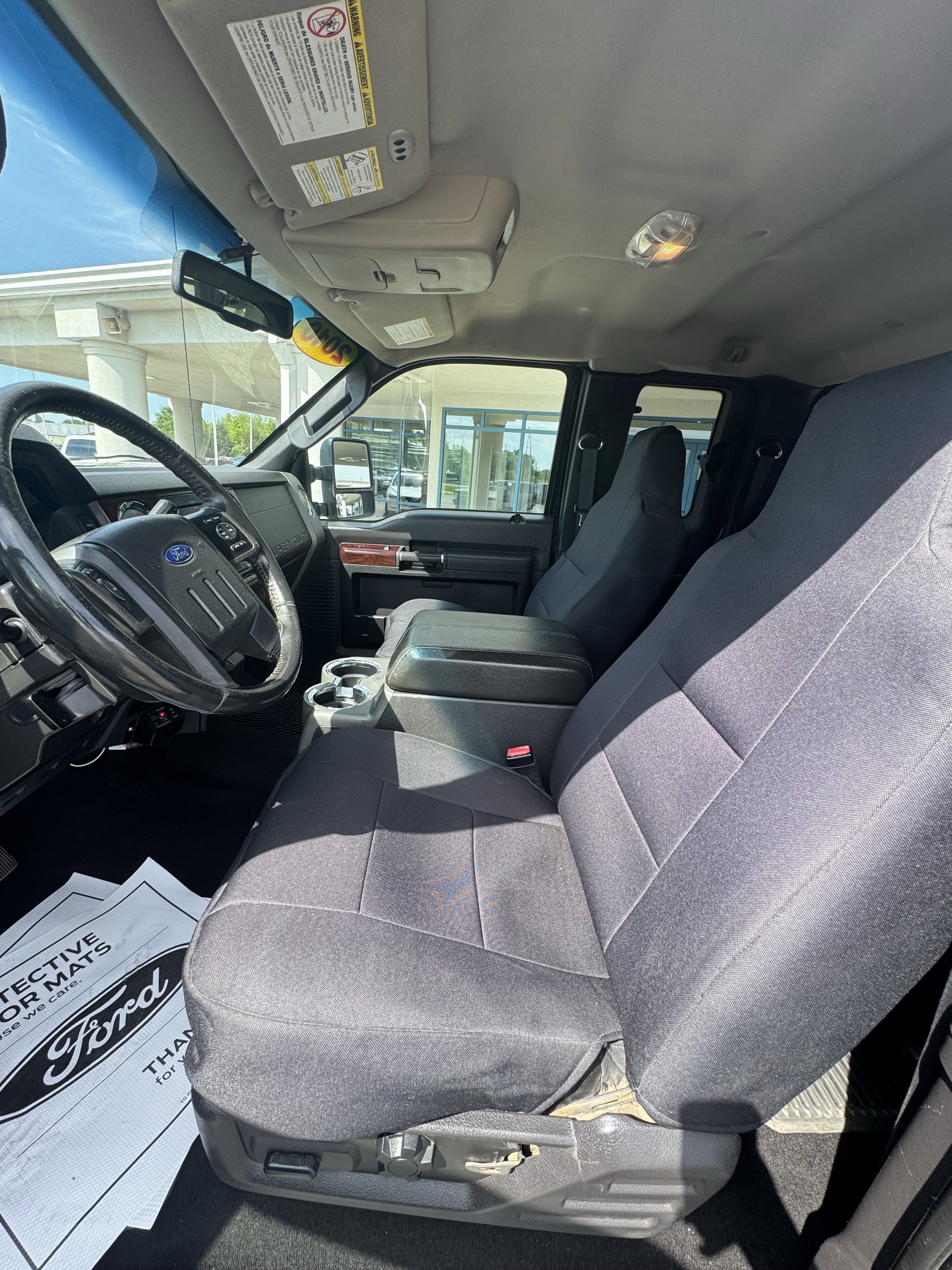

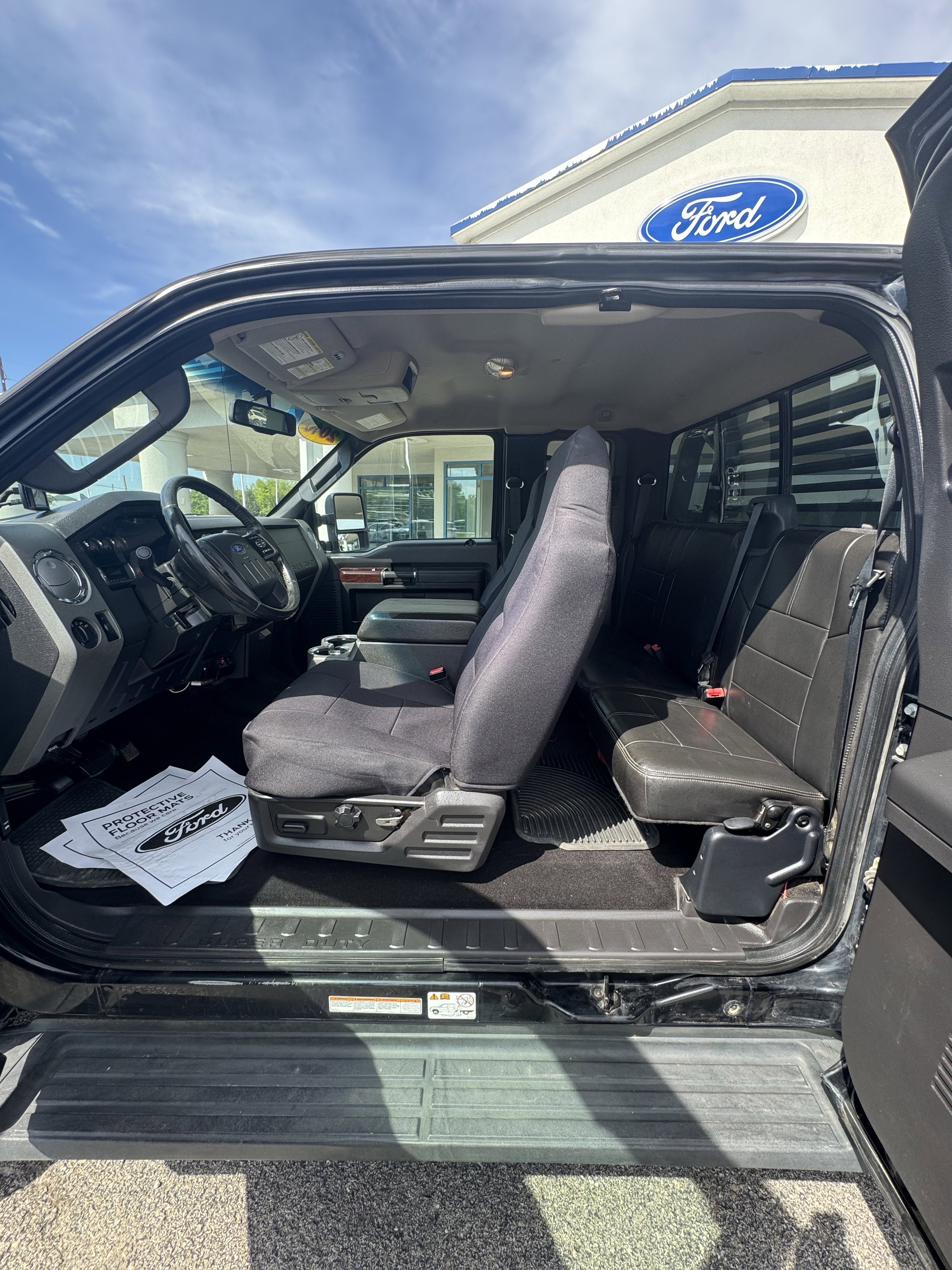

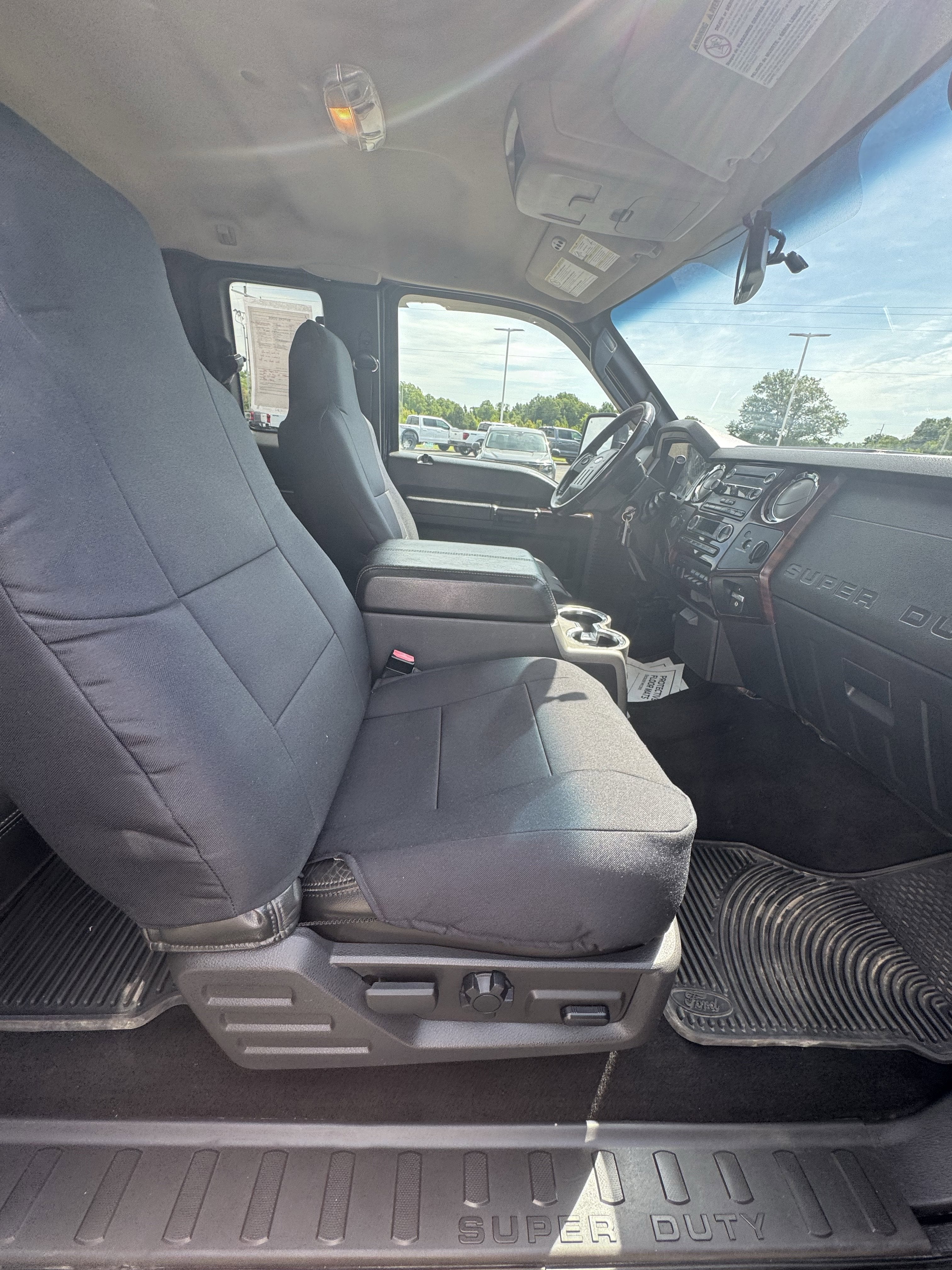

• Premium leather heated captains chairs -inc: center console, dual manual lumbar support
• Pwr driver/front passenger seat

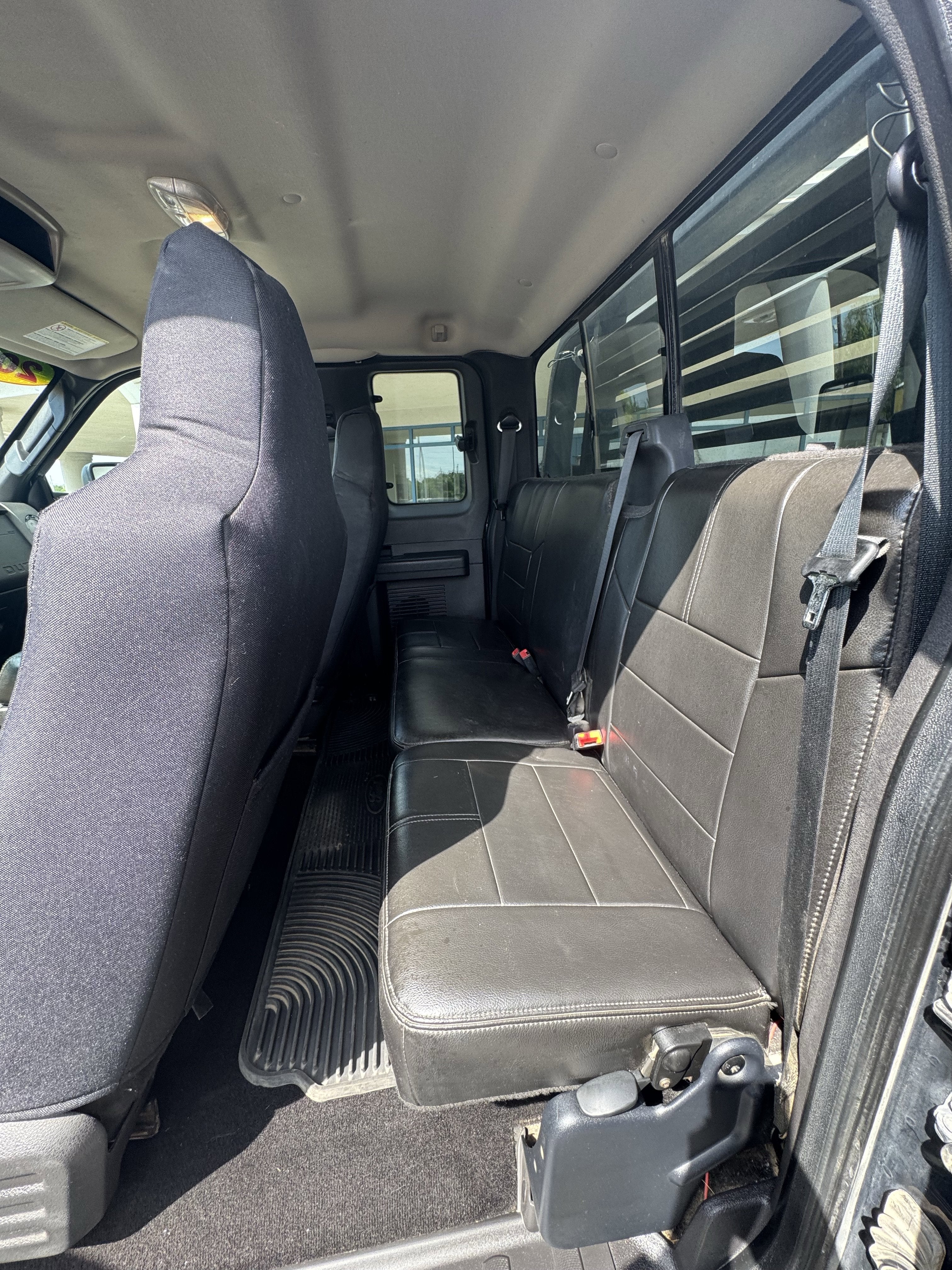

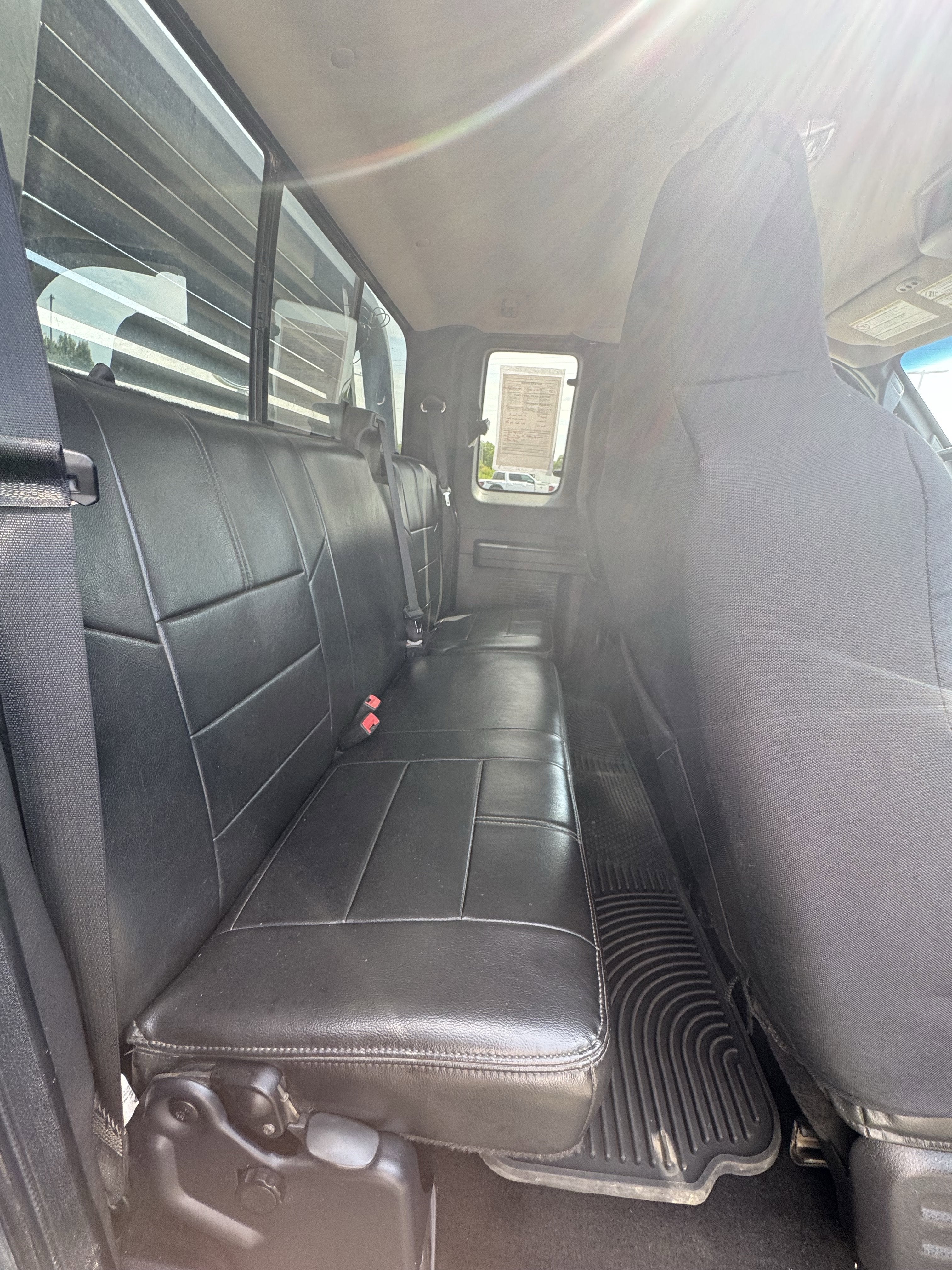

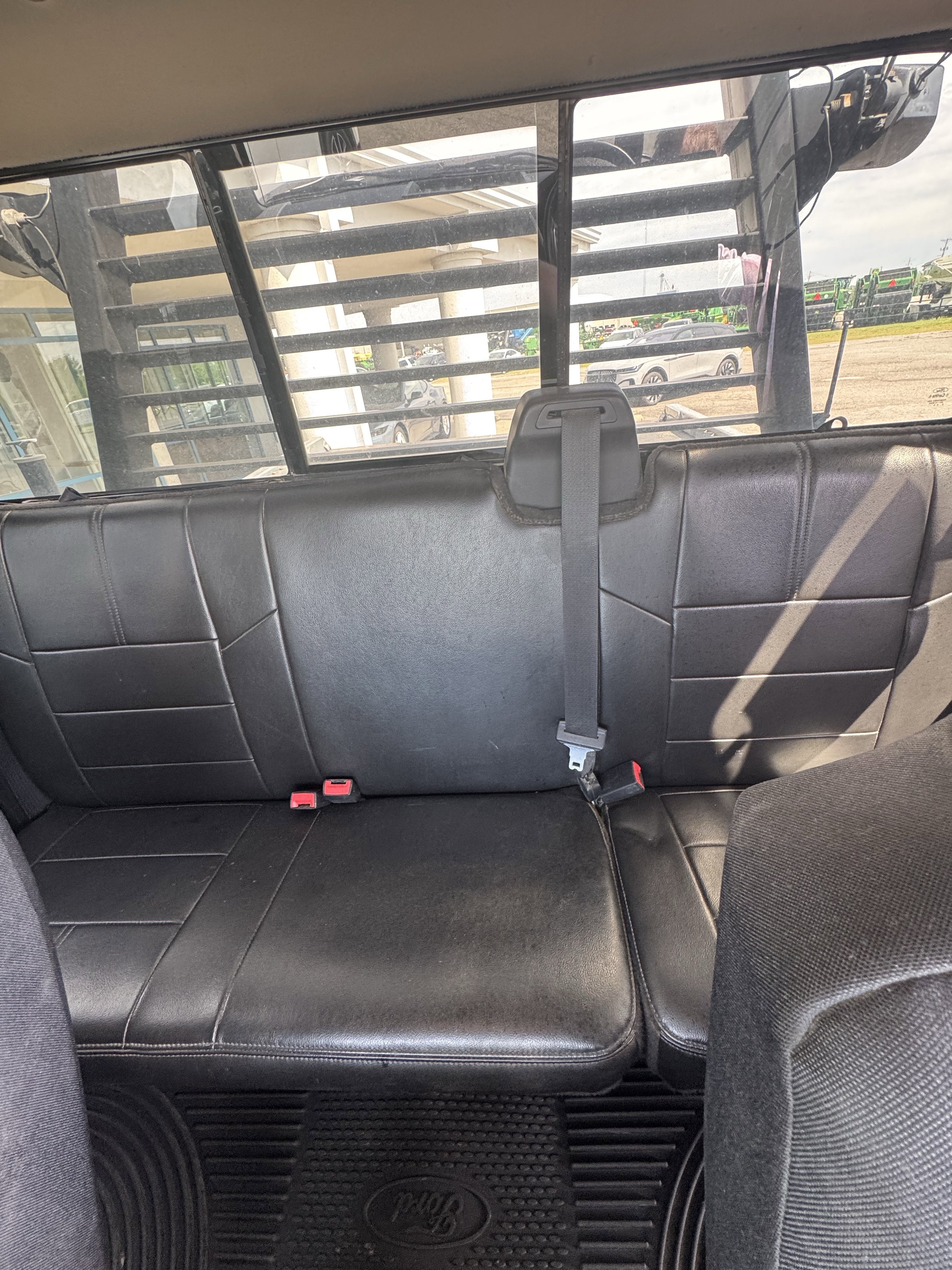

• Premium vinyl rear fold-up bench seat
• Color-coordinated carpet full floor covering
• Color-coordinated carpeted front/rear floor mats
• Color-coordinated scuff plates
• Tilt steering wheel

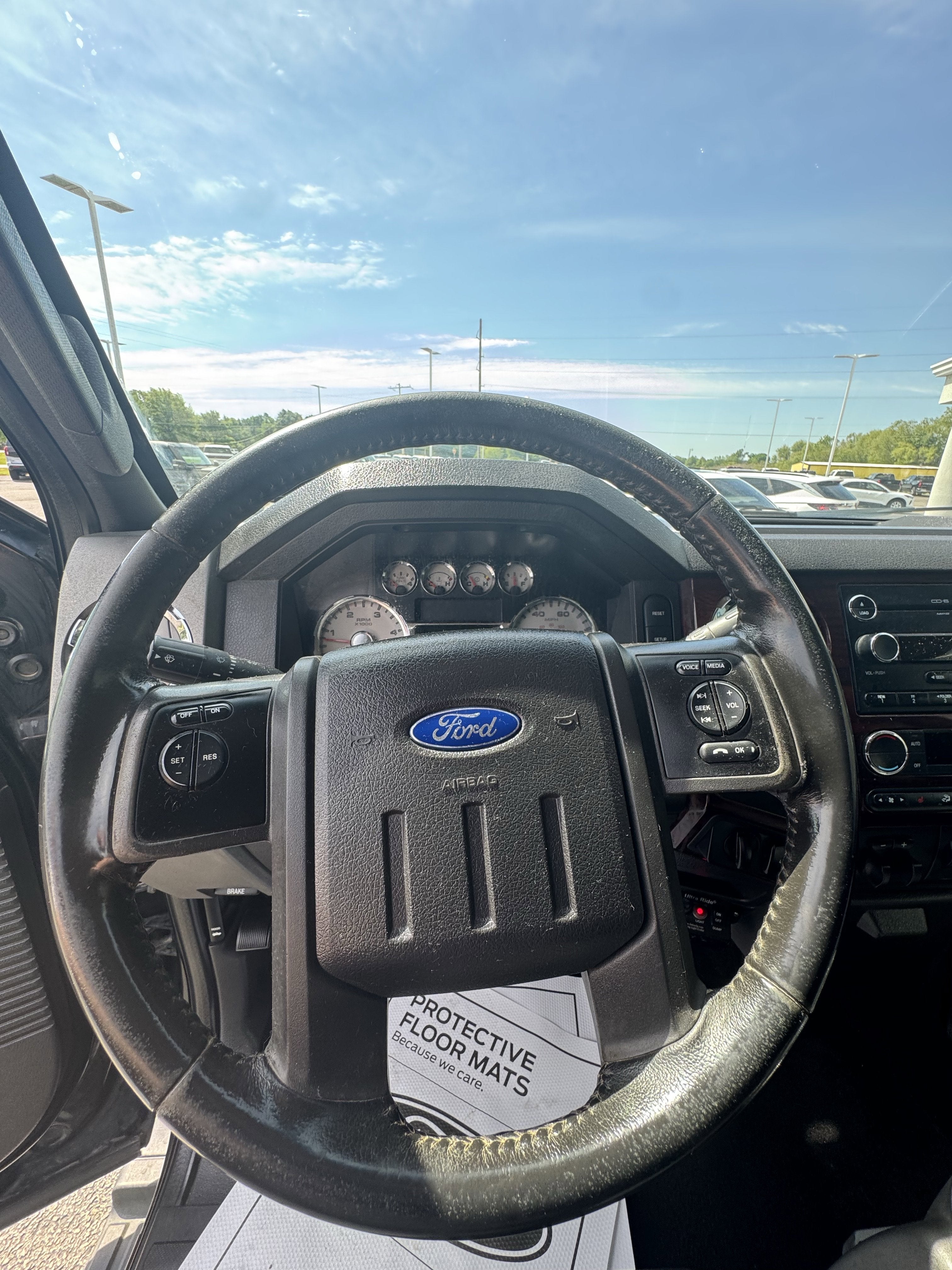

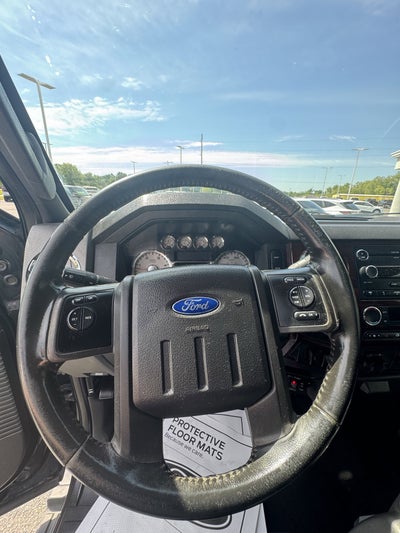

• Color-coordinated leather-wrapped steering wheel w/audio, SYNC & cruise controls

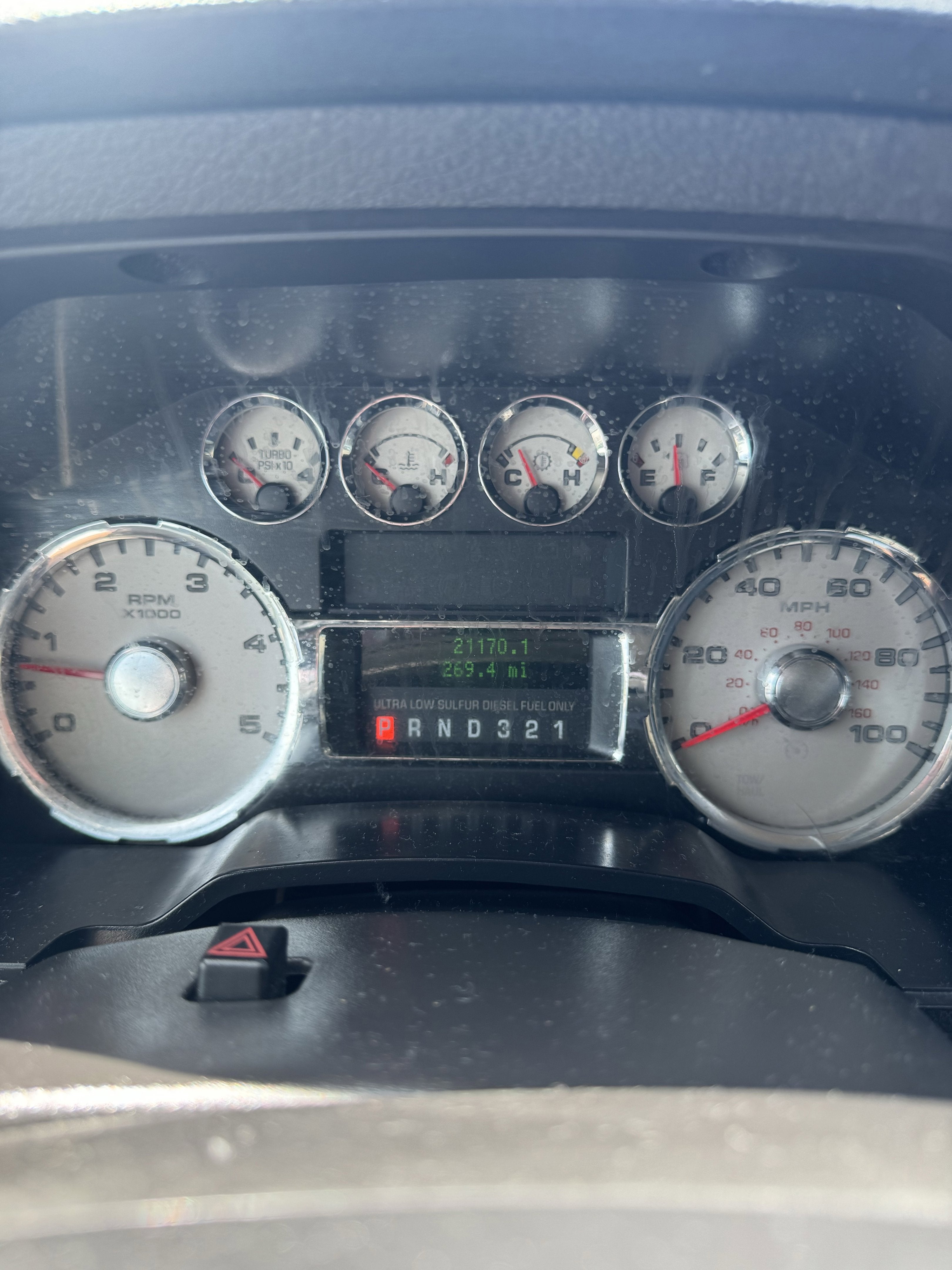

• Metallic faced instrument cluster w/cream gauges & black metallic graphics
• Inside hood release
• Accessory delay
• SecuriLock anti-theft ignition system
• Advanced security group -inc: auto lock/unlock, autolamp, rainlamp, driver side wired keypad
• Pwr door locks w/backlit switches
• Remote keyless entry w/(2) key fobs & perimeter anti-theft alarm
• Pwr windows -inc: driver side one-touch down feature, backlit switches
• Cruise control
• Rear window defroster
• Dash-top tray

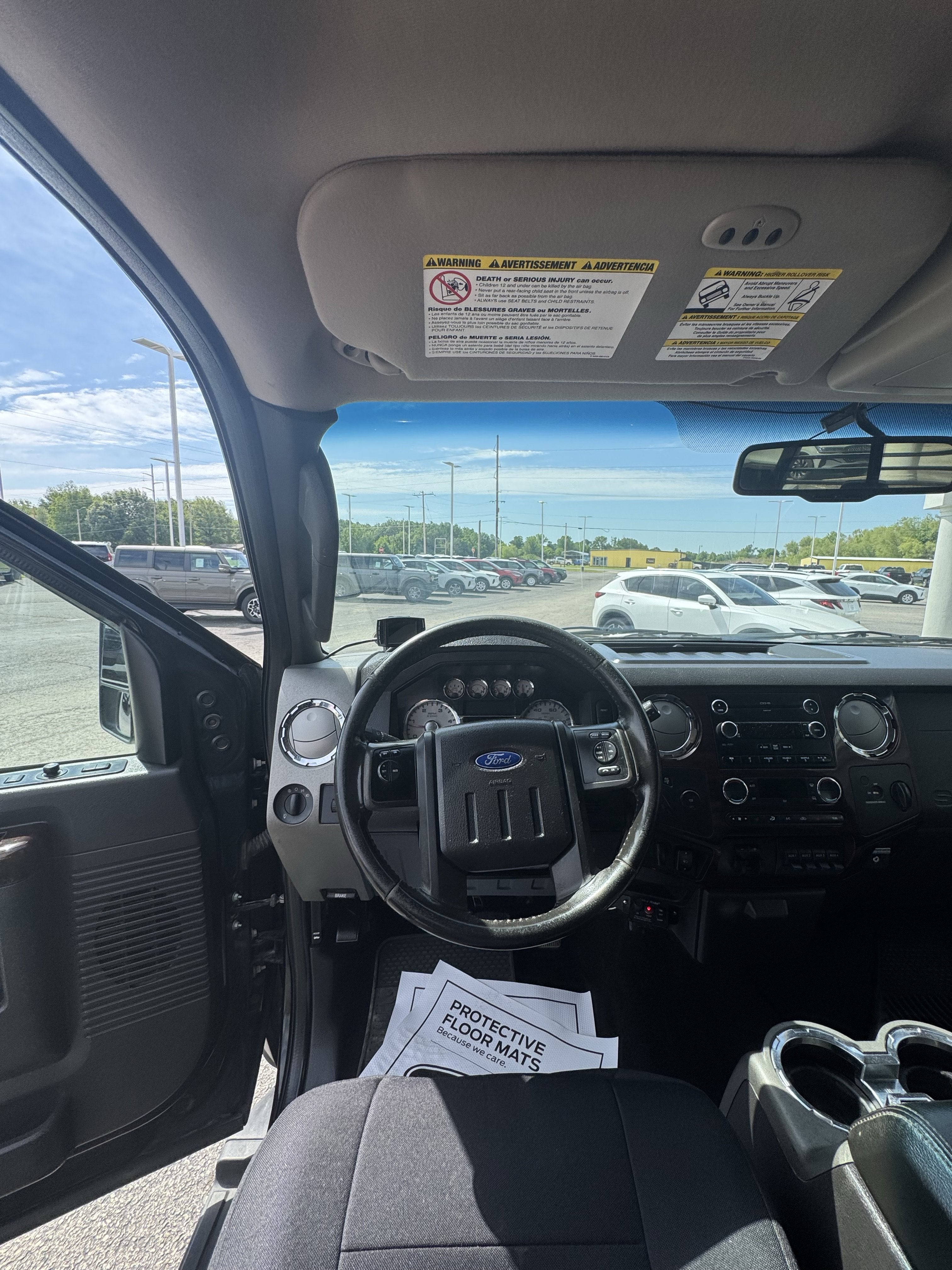

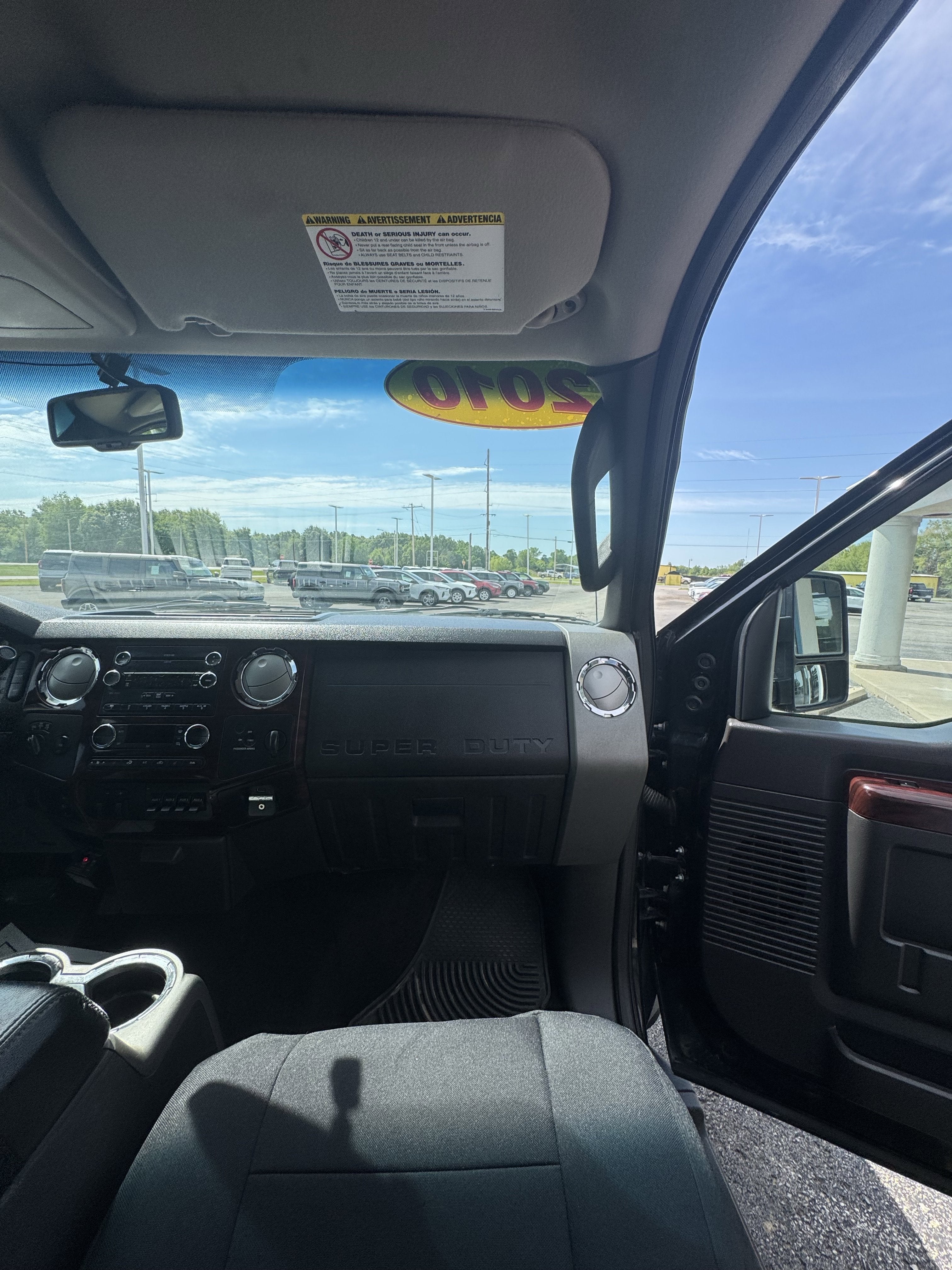

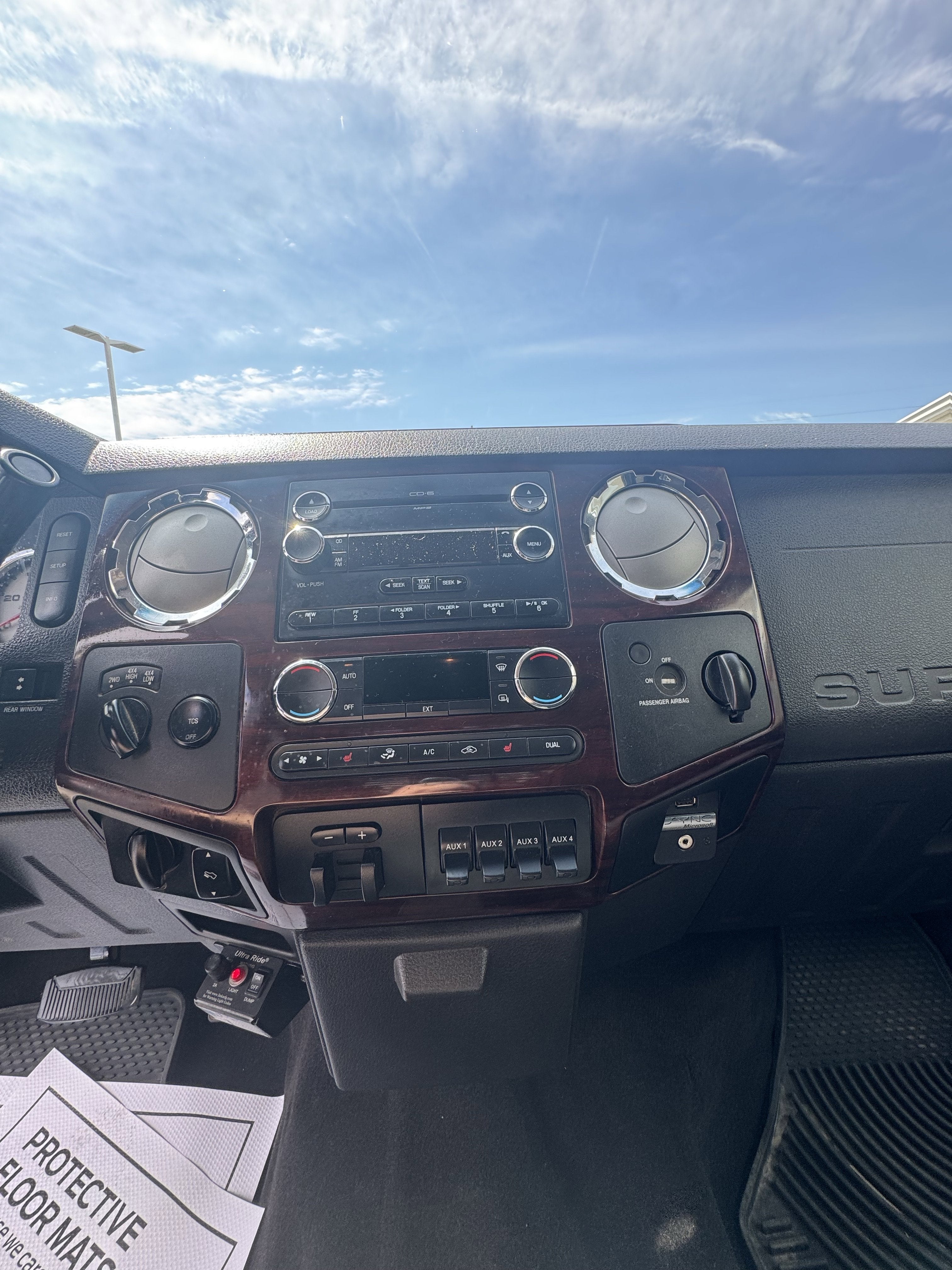

• Color-coordinated instrument panel w/simulated deep chestnut woodgrain insert, glove box, (4) air registers w/positive shutoff, pwr point & (4) upfitter switches
• Auxiliary pwr point
• Dual front grab handles
• Front passenger roof ride handles
• Overhead console -inc: garage door opener storage & sunglass storage bins
• Color-coordinated molded cloth headliner
• Electrochromic rearview mirror w/built-in microphone for SYNC & compass

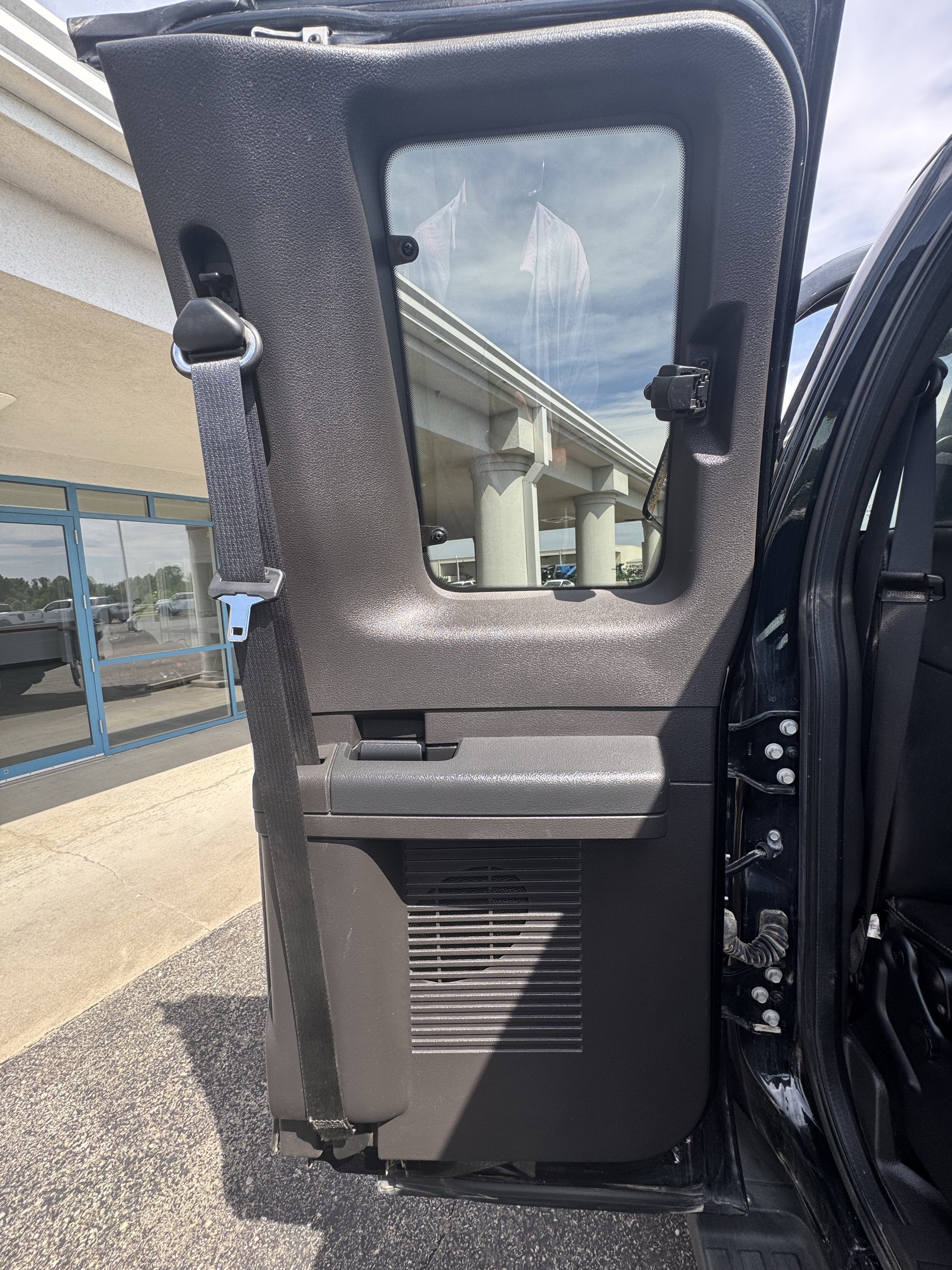

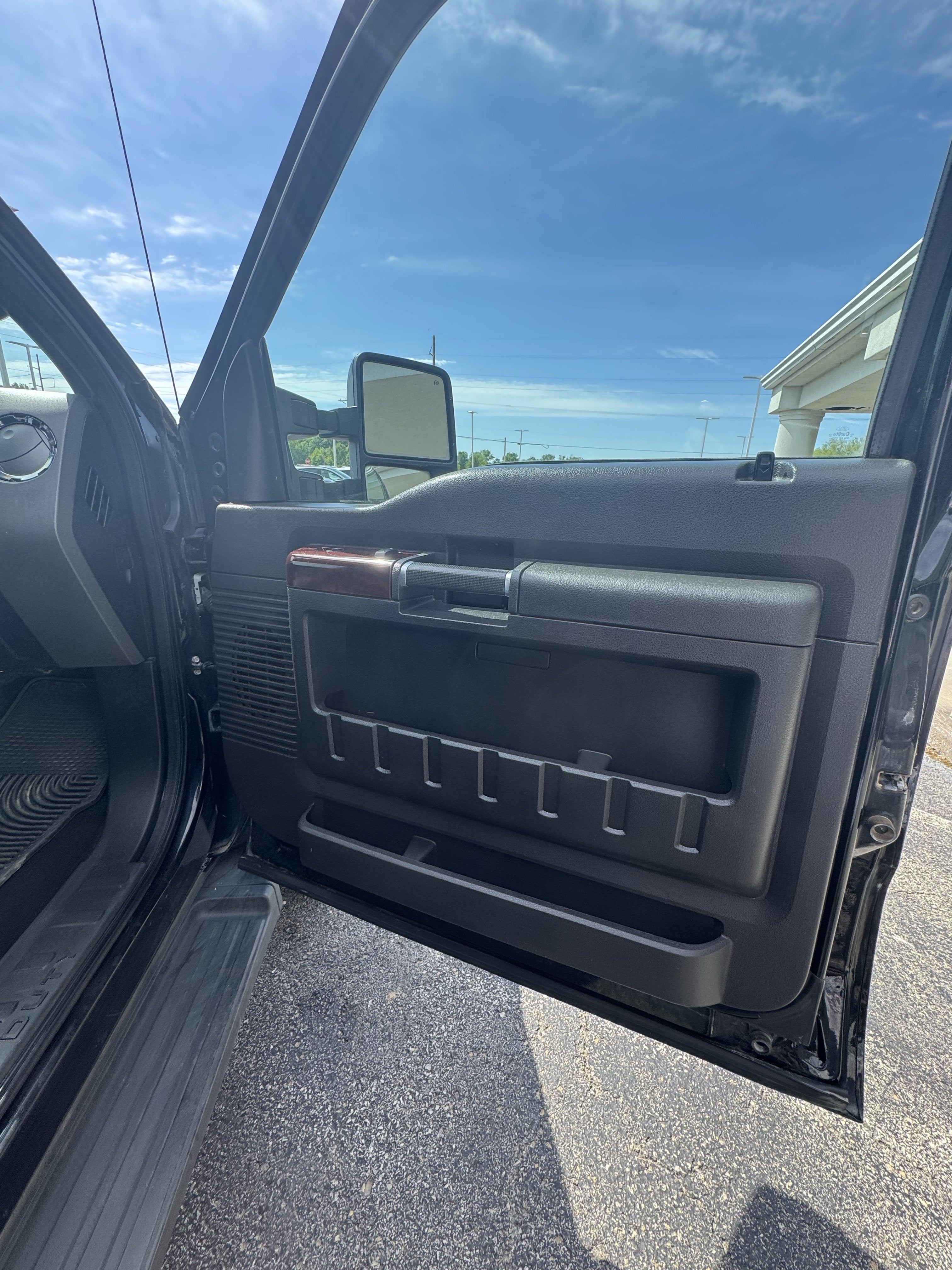

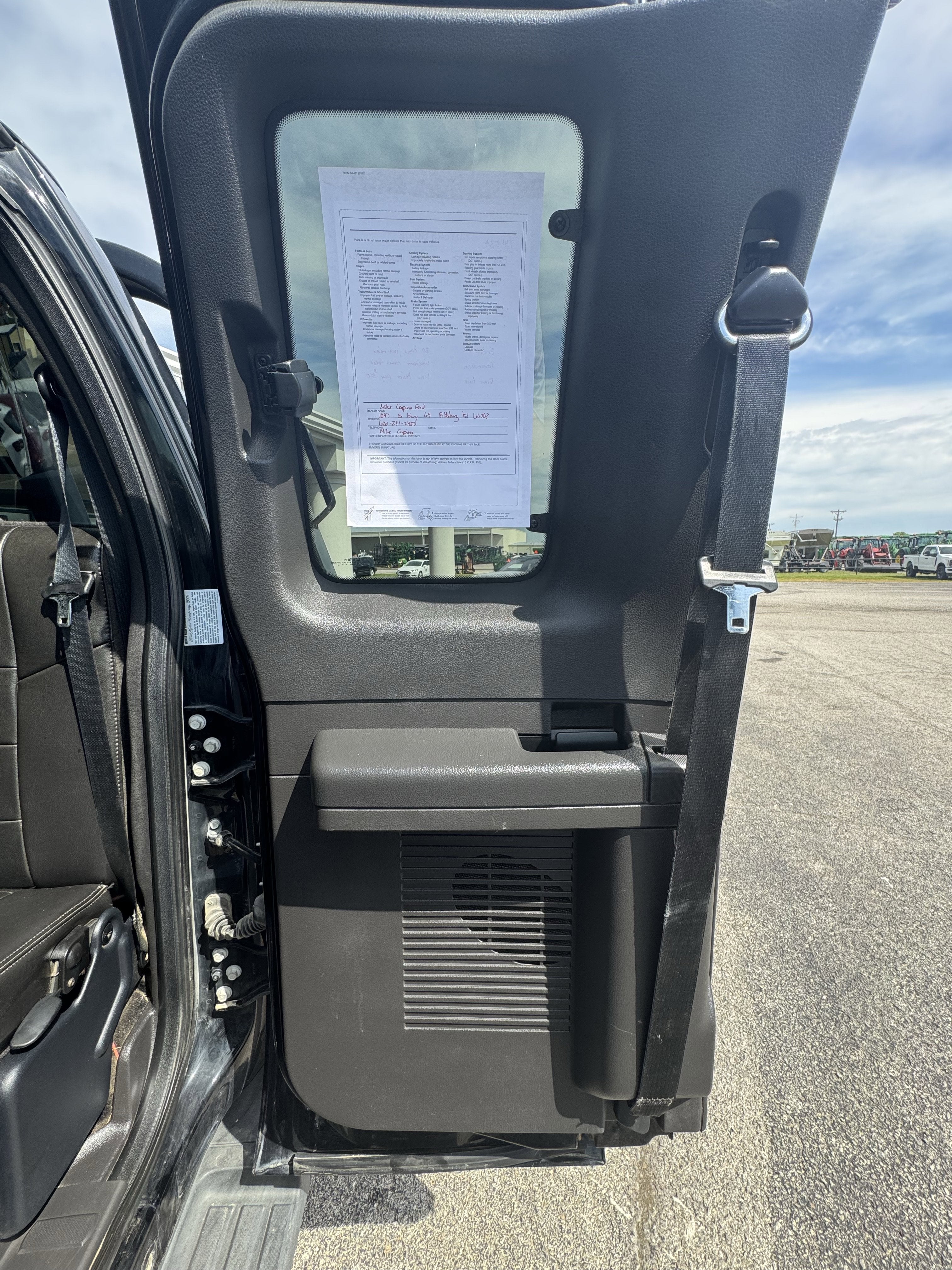

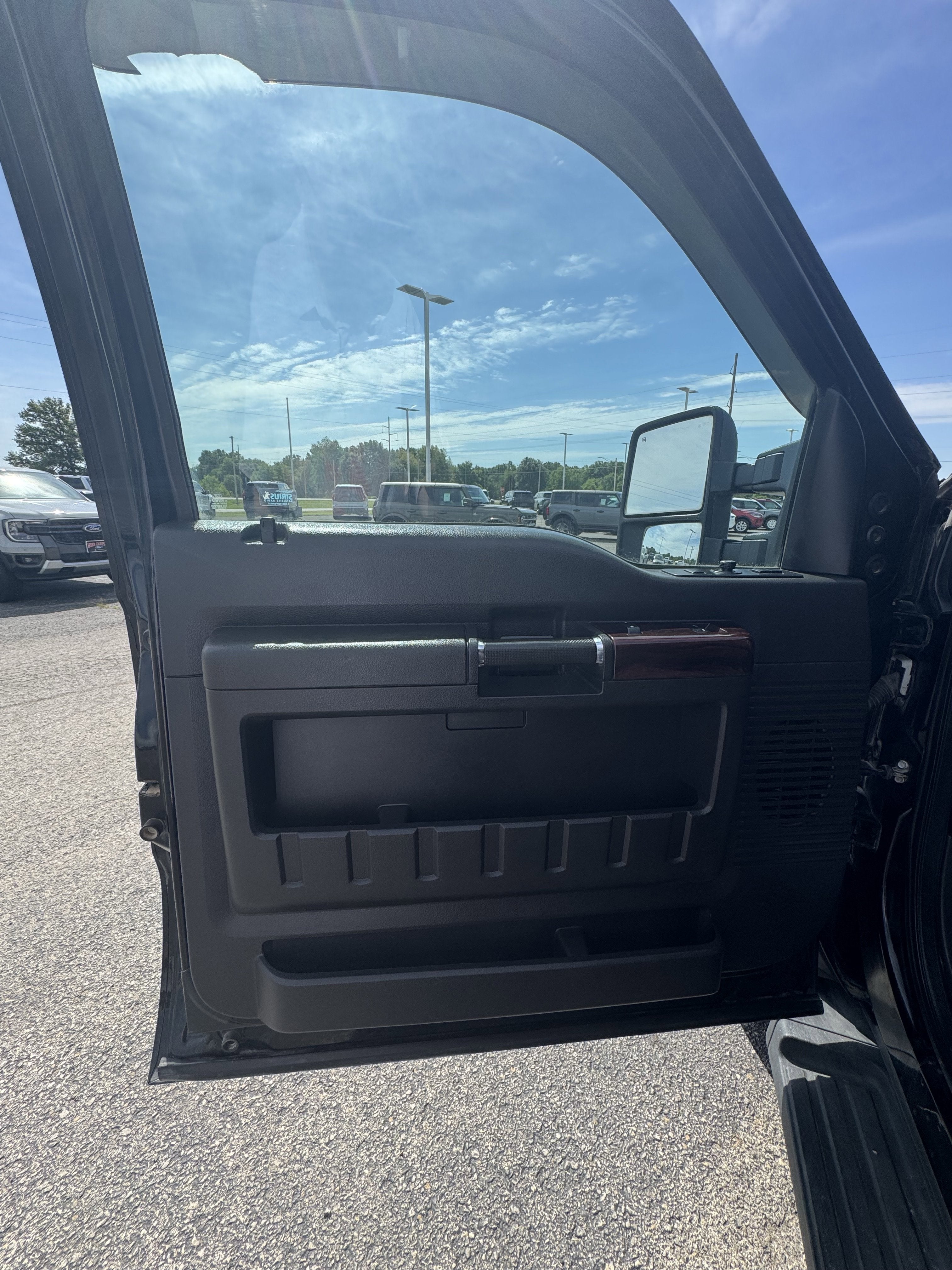

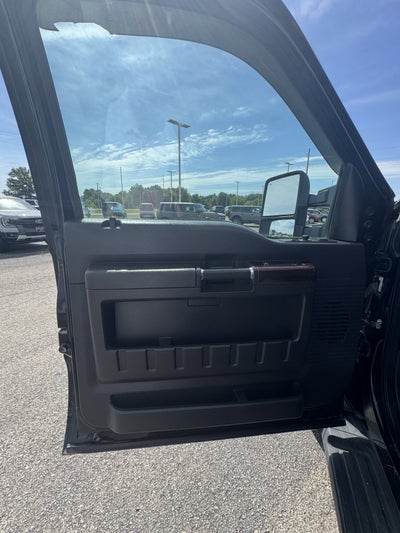

• Color-coordinated door trim panel -inc: soft armrest, grab handle, reflector, deep chestnut woodgrain upper applique, upper & lower map pockets
• Rear door map pockets w/integrated "closed containers only" cup holders
• Color-coordinated cloth sun visors -inc: LH map strap, dual illuminated covered mirrors
• Door activated dome lamp w/delay, I/P switch operation
• Dual map lights
• Dual color-coordinated coat hooks

• Anti-lock braking system (ABS)
• Driver/front passenger airbags
• Passenger side airbag deactivation switch
• Color-coordinated 3-point safety belts w/front outboard height adjustment
• Child tethers on all passenger seats
• SOS post crash alert system
• Dual-note electric horn

6.4L OHV V8 POWER STROKE DIESEL ENGINE

• 200-amp HD alternator
• dual 78 amp/hr 750 CCA battery
• I/P air filter minder
• turbo boost gauge *Includes Winter Front Grille Cover in AK
• CO
• ID
• IA
• ME
• MI
• MT
• NH
• NY
• ND
• SD
• VT
• WI
• WY*

• 6.4L OHV V8 POWER STROKE DIESEL ENGINE -inc: 200-amp HD alternator dual 78 amp/hr 750 CCA battery I/P air filter minder turbo boost gauge *Includes Winter Front Grille Cover in AK CO ID IA ME MI MT NH NY ND SD VT WI WY*
• Four Wheel Drive
• Tow Hooks
• Power Steering
• 4-Wheel Disc Brakes
• Tires - Front All-Season
• Tires - Rear All-Season
• Aluminum Wheels
• Fog Lamps
• Heated Mirrors
• Power Mirror(s)
• Integrated Turn Signal Mirrors
• Power Folding Mirrors
• Privacy Glass
• Sliding Rear Window
• Intermittent Wipers
• Variable Speed Intermittent Wipers
• AM/FM Stereo
• CD Player
• Satellite Radio
• Telematics
• Navigation from Telematics
• Climate Control
• Multi-Zone A/C
• A/C
• Leather Seats
• Bucket Seats
• Heated Front Seat(s)
• Driver Adjustable Lumbar
• Passenger Adjustable Lumbar
• Power Driver Seat
• Power Passenger Seat
• Floor Mats
• Adjustable Steering Wheel
• Leather Steering Wheel
• Trip Computer
• Immobilizer
• Automatic Headlights
• Security System
• Keyless Entry
• Rear Defrost
• Universal Garage Door Opener
• Auto-Dimming Rearview Mirror
• Driver Vanity Mirror
• Passenger Vanity Mirror
• Driver Illuminated Vanity Mirror
• Passenger Illuminated Visor Mirror
• Front Reading Lamps
• ABS
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (Primary): 650
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): HD 200
• Maximum Alternator Capacity (amps): 155
• Maximum Alternator Watts: - TBD -
• Maximum Alternator Watts: 2100
• Cooling System
• Total Cooling System Capacity (qts): 30.5
• Total Cooling System Capacity (qts): 27.5
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 6000
• Gross Axle Wt Rating - Front (lbs): 5600
• Gross Axle Wt Rating - Rear (lbs): 13660
• Curb Weight - Front (lbs): 4828
• Curb Weight - Front (lbs): 4117
• Curb Weight - Rear (lbs): 3126
• Curb Weight - Rear (lbs): 3015
• Gross Vehicle Weight Rating Cap (lbs): 17950
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 6000
• Spring Capacity - Front (lbs): 5600
• Spring Capacity - Rear (lbs): 13660
• Axle Type - Front: Monobeam
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 7000
• Axle Capacity - Rear (lbs): 13660
• Axle Ratio (:1) - Front: 4.88
• Axle Ratio (:1) - Rear: 4.88
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.26
• Stabilizer Bar Diameter - Rear (in): 1.26
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14.53 x 0.47
• Rear Brake Rotor Diam x Thickness (in): 15.35 x 0.47
• Tires
• Front Tire Order Code: TFB
• Rear Tire Order Code: TFB
• Front Tire Size: 225/70R19.5G
• Rear Tire Size: 225/70R19.5G
• Front Tire Capacity (lbs): 3970
• Rear Tire Capacity (lbs): 3970
• Revolutions/Mile @ 45 mph - Front: 653
• Revolutions/Mile @ 45 mph - Rear: 653
• Wheels
• Front Wheel Size (in): 19.5 x 6.0
• Rear Wheel Size (in): 19.5 x 6.0
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 18.0
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 47.8
• Turning Diameter - Wall to Wall (ft): 49.6
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 40.0
• Fuel Tank Location: Aft-Axle
• Exterior Dimensions
• Wheelbase (in): 161.8
• Length, Overall w/o rear bumper (in): 247.0
• Width, Max w/o mirrors (in): 93.9
• Height, Overall (in): 79.9
• Overhang, Front (in): 37.6
• Overhang, Rear w/o bumper (in): 47.6
• Front Bumper to Back of Cab (in): 139.4
• Cab to Axle (in): 60.0
• Cab to End of Frame (in): 107.6
• Ground to Top of Frame (in): 32.9
• Frame Width, Rear (in): 34.2
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): 7.9
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.4
• Front Leg Room (in): 41.0
• Front Shoulder Room (in): 68.0
• Front Hip Room (in): 67.6
• Second Head Room (in): 38.4
• Second Leg Room (in): 31.8
• Second Shoulder Room (in): 68.1
• Second Hip Room (in): 67.3
• Summary

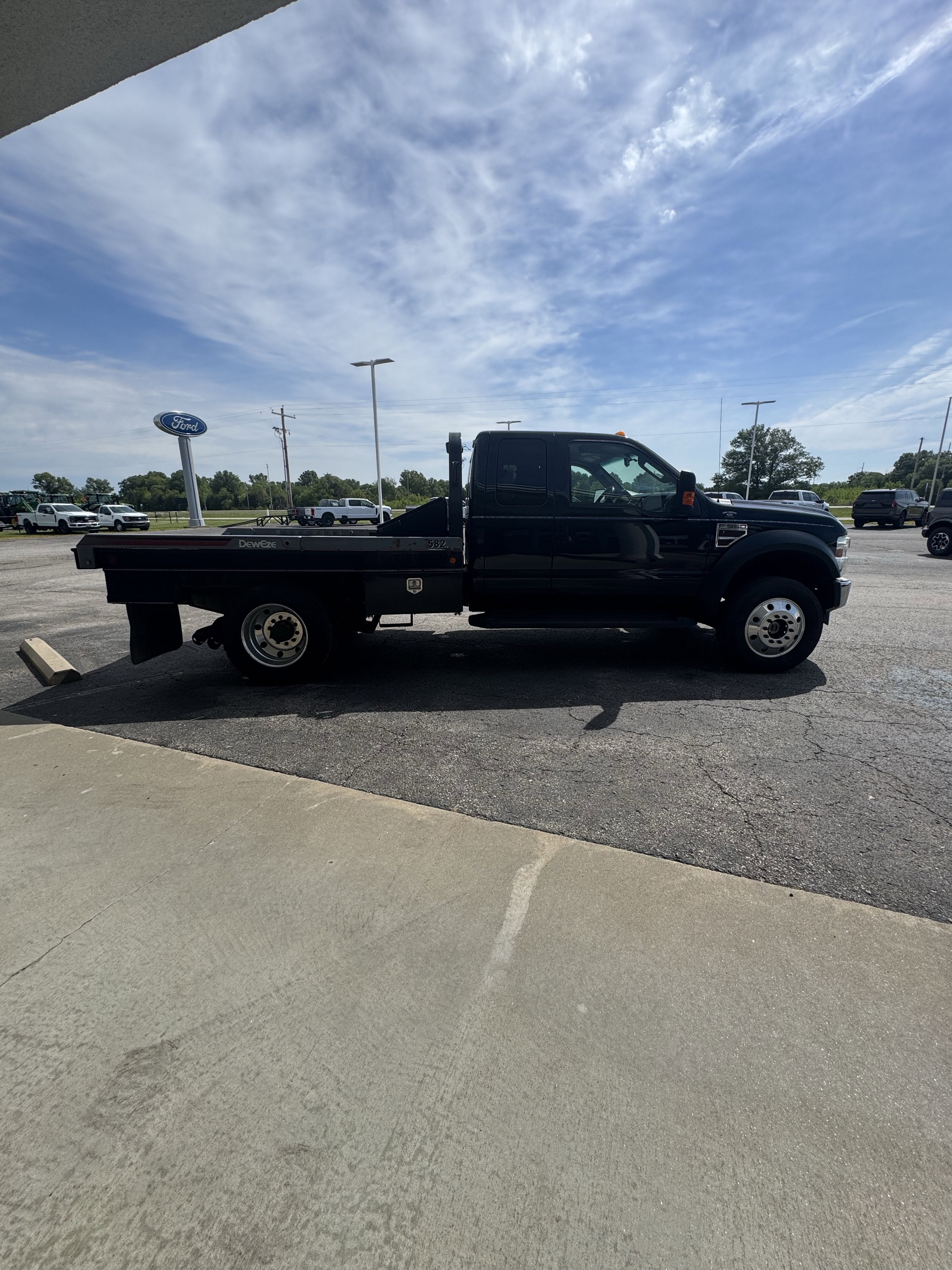

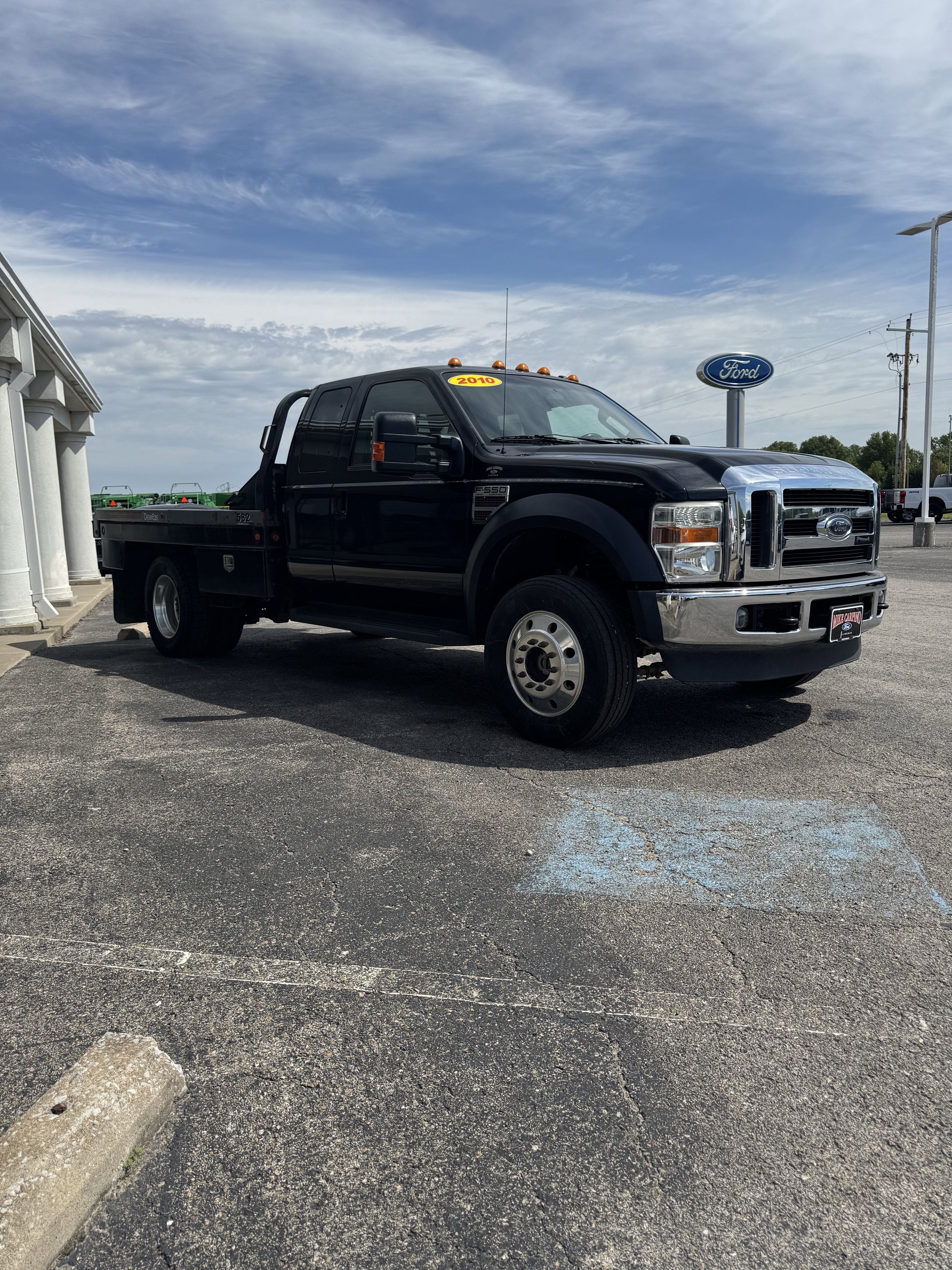

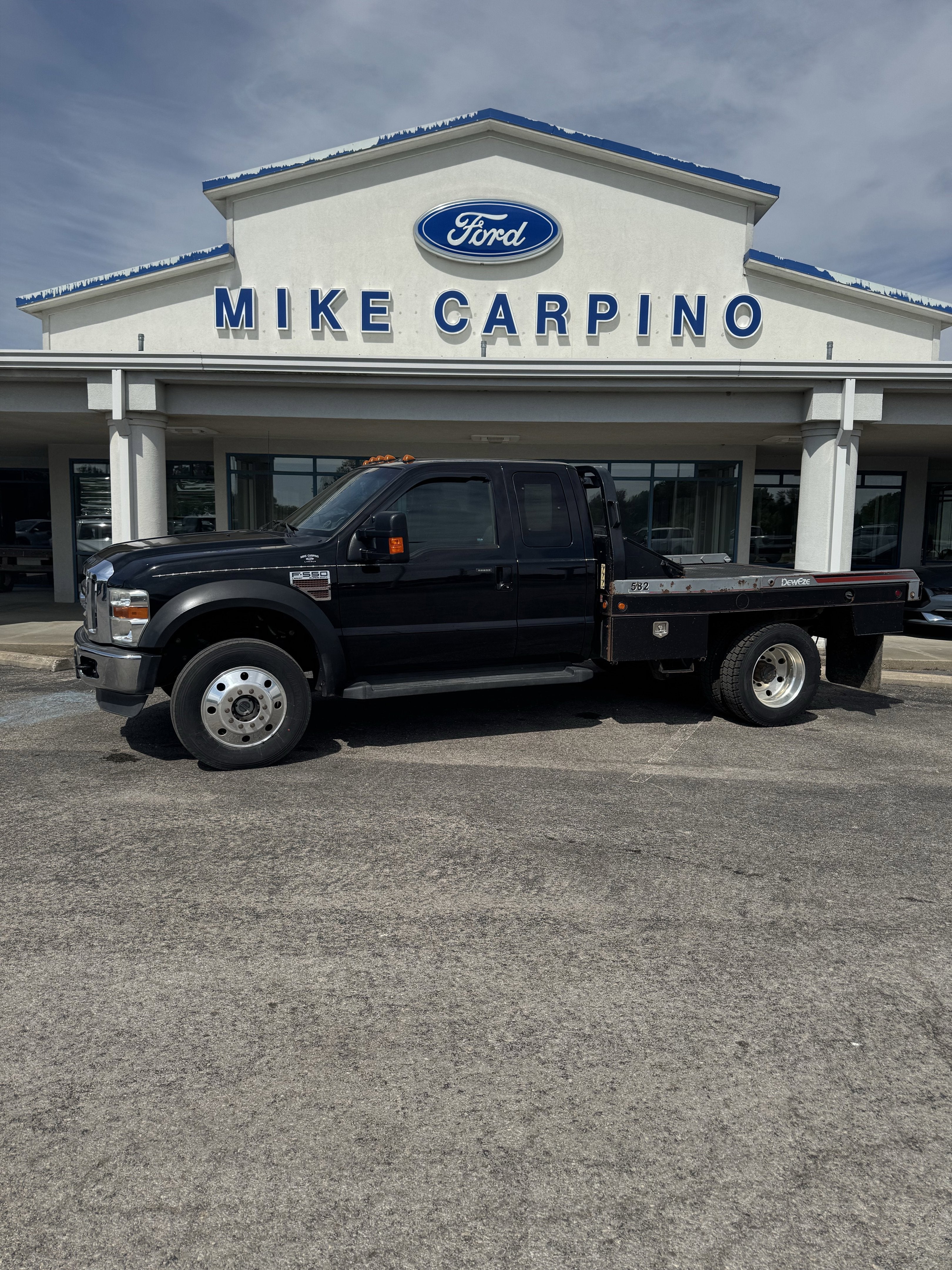

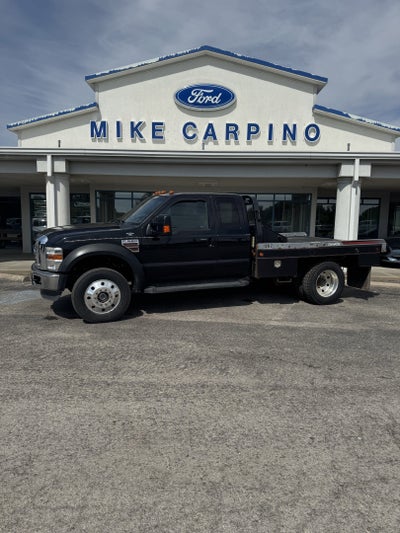

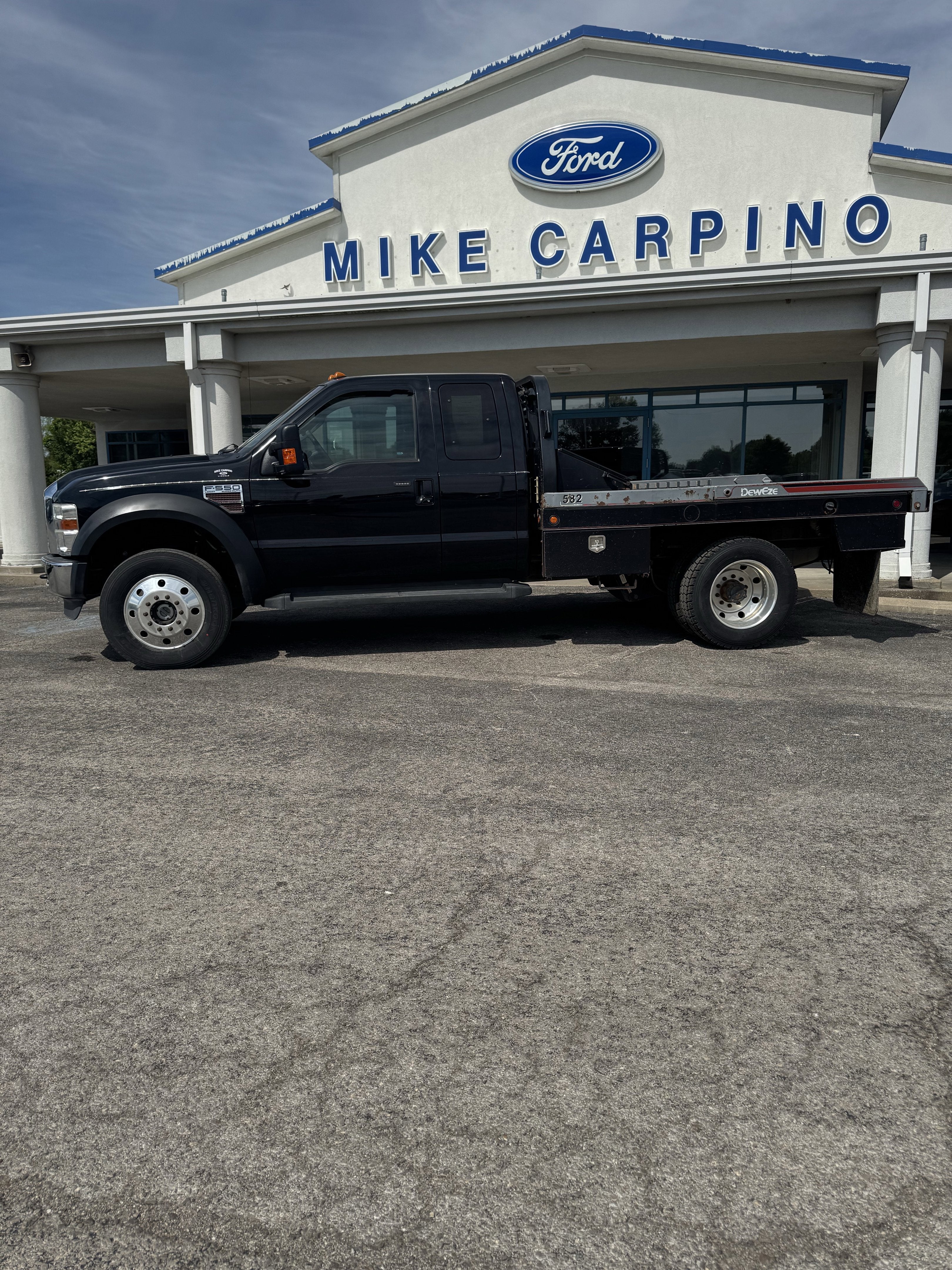

• Vehicle Name: Ford Super Duty F-550 DRW
• Body Style: SuperCab
• Body Code: 162" WB
